| Pin Type | R/R |
| Conductor Material | WW (tungsten) |
| Plating | Gold plating (Nickle Based) |
| Full Length | 30mm |
| Conductor Length (test point) |
3mm |
| Conductor Length (head point) |
2mm |
| Conductor Diameter | 0.11mm |
| Coating Diameter | 0.13mm |
| Coating Color | PINK |

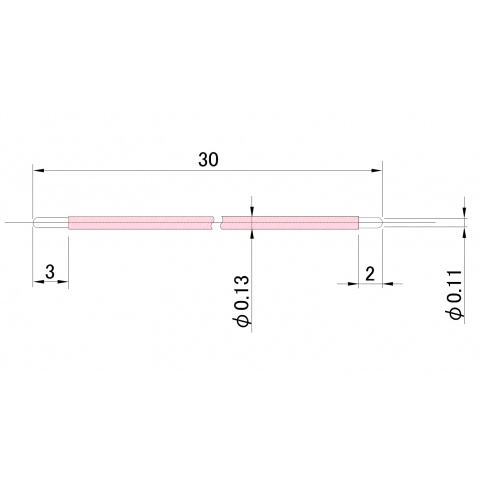

Wire Probe－R/R type
R/R type－Φ0.11mm

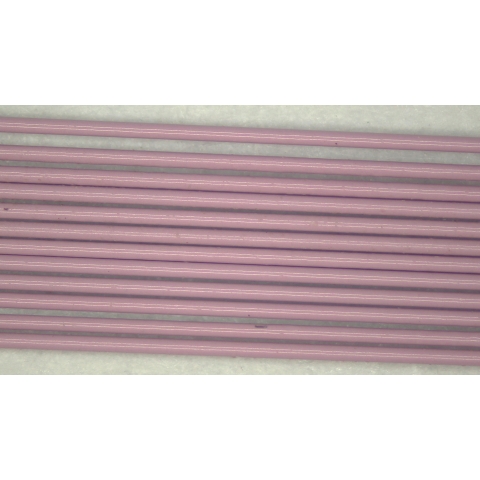

Detail
